Mermaid Diagrams

VMark supports Mermaid diagrams for creating flowcharts, sequence diagrams, and other visualizations directly in your Markdown documents.

• Inserting a Diagram
  • Using the Menu or Shortcut
  • Typing a Code Block
• Editing Modes
  • Rich Text Mode (WYSIWYG)
  • Source Mode with Live Preview
• Supported Diagram Types
  • Flowchart
  • Sequence Diagram
  • Class Diagram
  • State Diagram
  • Entity Relationship Diagram
  • Gantt Chart
  • Pie Chart
  • Git Graph
• Tips
  • Syntax Errors
  • Pan and Zoom
  • Copy Mermaid Source
  • Theme Integration
  • Export as PNG
  • Export as HTML/PDF
• Fixing AI-Generated Diagrams
  • 1. Unquoted Labels with Special Characters
  • 2. Trailing Semicolons
  • 3. Using graph Instead of flowchart
  • 4. Subgraph Titles with Special Characters
  • 5. Quick Fix Checklist
• Teach Your AI to Write Valid Mermaid
  • Mermaid Skill (Syntax Reference)
  • Mermaid Validator MCP Server (Syntax Checking)
• Learning Mermaid Syntax
  • Official Documentation
  • Practice Tools

Inserting a Diagram

Using the Menu or Shortcut

Choose Insert → Diagram, or press Alt + Mod + Shift + D. VMark inserts a mermaid code block with a starter flowchart for you to edit. If text is selected, the selection becomes the diagram source instead.

Typing a Code Block

Type a fenced code block with the mermaid language identifier:

```mermaid
graph TD
    A[Start] --> B{Decision}
    B -->|Yes| C[Do something]
    B -->|No| D[Do another thing]
```text

Editing Modes

Rich Text Mode (WYSIWYG)

In WYSIWYG mode, Mermaid diagrams are rendered inline. Double-click a diagram to edit its source code; the edit header has Copy, Cancel and Save buttons.

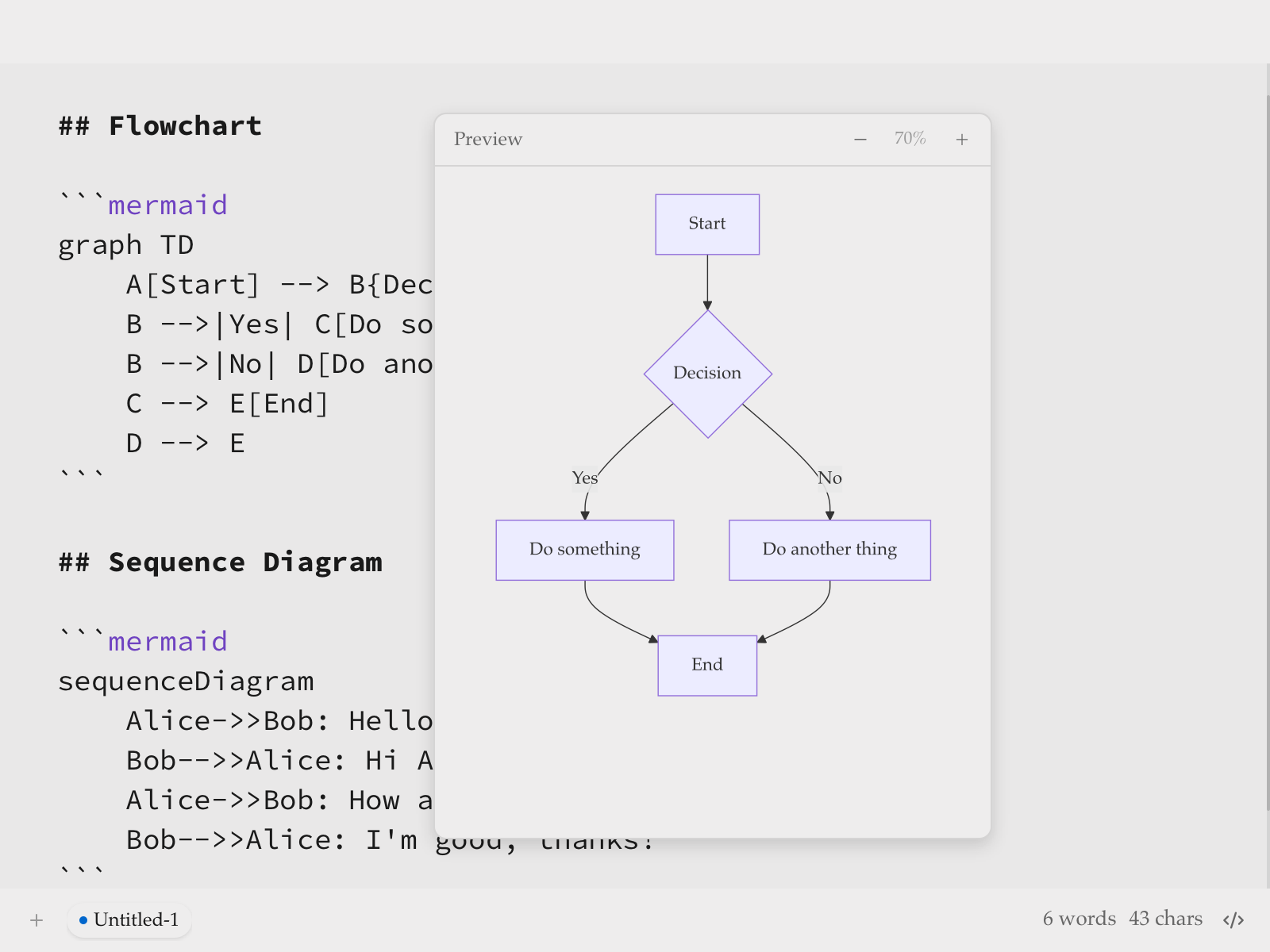

Source Mode with Live Preview

In Source mode, a floating preview panel shows the diagram while your cursor is inside a mermaid code block. The preview is off by default — turn it on with View → Toggle Diagram Preview (Alt + Mod + P) or the command palette. It stays on for that window until you toggle it off again.

Feature	Description
Live Preview	See rendered diagram as you type (200ms debounce)
Drag to Move	Drag the header to reposition the preview
Resize	Drag any edge or corner to resize
Zoom	Use − and + buttons, or Cmd/Ctrl + scroll (10% to 300%)

The preview panel remembers its position if you move it, making it easy to arrange your workspace.

Supported Diagram Types

VMark supports all Mermaid diagram types:

Flowchart

```mermaid
graph LR
    A[Start] --> B{Is it working?}
    B -->|Yes| C[Great!]
    B -->|No| D[Debug]
    D --> B
```text

Sequence Diagram

```mermaid
sequenceDiagram
    Alice->>Bob: Hello Bob!
    Bob-->>Alice: Hi Alice!
```text

Class Diagram

```mermaid
classDiagram
    Animal <|-- Duck
    Animal <|-- Fish
    Animal : +int age
    Animal : +swim()
```text

State Diagram

```mermaid
stateDiagram-v2
    [*] --> Idle
    Idle --> Processing : Start
    Processing --> Complete : Done
```text

Entity Relationship Diagram

```mermaid
erDiagram
    CUSTOMER ||--o{ ORDER : places
    ORDER ||--|{ LINE-ITEM : contains
```text

Gantt Chart

```mermaid
gantt
    title Project Timeline
    dateFormat  YYYY-MM-DD
    section Phase 1
    Research    :a1, 2024-01-01, 30d
```text

Pie Chart

```mermaid
pie title Distribution
    "Category A" : 40
    "Category B" : 30
```text

Git Graph

```mermaid
gitGraph
    commit
    branch develop
    commit
    checkout main
    merge develop
```text

Tips

Syntax Errors

If your diagram has a syntax error:

• In WYSIWYG mode: the code block shows the raw source
• In Source mode: the preview shows "Invalid mermaid syntax"

Check the Mermaid documentation for correct syntax.

Pan and Zoom

In WYSIWYG mode, rendered diagrams support interactive navigation:

Action	How
Pan	Click and drag the diagram (a plain scroll scrolls the document, not the diagram)
Zoom	Hold Cmd (macOS) or Ctrl (Windows/Linux) and scroll
Reset	Click the reset button that appears on hover (top-right corner)

Copy Mermaid Source

When editing a mermaid code block in WYSIWYG mode, a copy button appears in the edit header. Click it to copy the mermaid source code to the clipboard.

Theme Integration

Mermaid diagrams automatically adapt to VMark's current theme: diagram colors (node fills, borders, lines, text) are derived from the active theme's design tokens, so every theme (White, Paper, Mint, Sepia, Night, Solarized) — and any future theme — renders native-looking diagrams. Diagrams re-render when you switch themes.

Export as PNG

Hover over a rendered mermaid diagram in WYSIWYG mode to reveal an export button (top-right, to the left of the reset button). Click it to choose a theme:

Theme	Background
Light	White background
Dark	Dark background

The diagram is exported as a 2x resolution PNG via the system save dialog. The exported image uses a concrete system font stack, so text renders correctly regardless of the fonts installed on the viewer's machine.

Export as HTML/PDF

When exporting the full document to HTML or PDF, Mermaid diagrams are rendered as SVG images for crisp display at any resolution.

Fixing AI-Generated Diagrams

VMark uses Mermaid v12, which keeps the stricter parser (Langium) that arrived in v11. AI tools (ChatGPT, Claude, Copilot, etc.) often generate syntax that worked in older Mermaid versions but fails in v11 and later. Here are the most common issues and how to fix them.

1. Unquoted Labels with Special Characters

The most frequent issue. If a node label contains parentheses, apostrophes, colons, or quotes, it must be wrapped in double quotes.

<!-- Fails -->
```mermaid
flowchart TD
    A[User's Dashboard] --> B[Step (optional)]
    C[Status: Active] --> D[Say "Hello"]
```text

<!-- Works -->
```mermaid
flowchart TD
    A["User's Dashboard"] --> B["Step (optional)"]
    C["Status: Active"] --> D["Say Hello"]
```text

Rule: If a label contains any of these characters — ' ( ) : " ; # & — wrap the entire label in double quotes: ["like this"].

2. Trailing Semicolons

AI models sometimes add semicolons at line ends. Mermaid v11 and later do not allow them.

<!-- Fails -->
```mermaid
flowchart TD
    A --> B;
    B --> C;
```text

<!-- Works -->
```mermaid
flowchart TD
    A --> B
    B --> C
```text

3. Using graph Instead of flowchart

The graph keyword is legacy syntax. Some newer features only work with flowchart. Prefer flowchart for all new diagrams.

<!-- May fail with newer syntax -->
```mermaid
graph TD
    A --> B
```text

<!-- Preferred -->
```mermaid
flowchart TD
    A --> B
```text

4. Subgraph Titles with Special Characters

Subgraph titles follow the same quoting rules as node labels.

<!-- Fails -->
```mermaid
flowchart TD
    subgraph Service Layer (Backend)
        A --> B
    end
```text

<!-- Works -->
```mermaid
flowchart TD
    subgraph "Service Layer (Backend)"
        A --> B
    end
```text

5. Quick Fix Checklist

When an AI-generated diagram shows "Invalid syntax":

1. Quote all labels that contain special characters: ["Label (with parens)"]
2. Remove trailing semicolons from every line
3. Replace graph with flowchart if using newer syntax features
4. Quote subgraph titles that contain special characters
5. Test in the Mermaid Live Editor to pinpoint the exact error

TIP

When asking AI to generate Mermaid diagrams, add this to your prompt: "Use Mermaid v11 syntax. Always wrap node labels in double quotes if they contain special characters. Do not use trailing semicolons."

Teach Your AI to Write Valid Mermaid

Instead of fixing diagrams by hand every time, you can install tools that teach your AI coding assistant to generate correct Mermaid v11 syntax from the start.

Mermaid Skill (Syntax Reference)

A skill gives your AI access to up-to-date Mermaid syntax documentation for all 23 diagram types, so it generates correct code instead of guessing.

Source: WH-2099/mermaid-skill

Claude Code

# Clone the skill
git clone https://github.com/WH-2099/mermaid-skill.git /tmp/mermaid-skill

# Install globally (available in all projects)
mkdir -p ~/.claude/skills/mermaid
cp -r /tmp/mermaid-skill/.claude/skills/mermaid/* ~/.claude/skills/mermaid/

# Or install per-project only
mkdir -p .claude/skills/mermaid
cp -r /tmp/mermaid-skill/.claude/skills/mermaid/* .claude/skills/mermaid/

Once installed, use /mermaid <description> in Claude Code to generate diagrams with correct syntax.

Codex (OpenAI)

# Same files, different location
mkdir -p ~/.codex/skills/mermaid
cp -r /tmp/mermaid-skill/.claude/skills/mermaid/* ~/.codex/skills/mermaid/

Gemini CLI (Google)

Gemini CLI reads skills from ~/.gemini/ or per-project .gemini/. Copy the reference files and add a instruction to your GEMINI.md:

mkdir -p ~/.gemini/skills/mermaid
cp -r /tmp/mermaid-skill/.claude/skills/mermaid/references ~/.gemini/skills/mermaid/

Then add to your GEMINI.md (global ~/.gemini/GEMINI.md or per-project):

## Mermaid Diagrams

When generating Mermaid diagrams, read the syntax reference in
~/.gemini/skills/mermaid/references/ for the diagram type you are
generating. Use Mermaid v11 syntax: always quote node labels containing
special characters, do not use trailing semicolons, prefer "flowchart"
over "graph".

Mermaid Validator MCP Server (Syntax Checking)

An MCP server lets your AI validate diagrams before presenting them to you. It catches errors using the same parsers (Jison + Langium) that Mermaid v11 uses internally.

Source: fast-mermaid-validator-mcp

Claude Code

# One command — installs globally
claude mcp add -s user --transport stdio mermaid-validator \
  -- npx -y @ai-of-mine/fast-mermaid-validator-mcp --mcp-stdio

This registers a mermaid-validator MCP server that provides three tools:

Tool	Purpose
validate_mermaid	Check a single diagram's syntax
validate_file	Validate diagrams inside Markdown files
get_examples	Get sample diagrams for all 28 supported types

Codex (OpenAI)

codex mcp add --transport stdio mermaid-validator \
  -- npx -y @ai-of-mine/fast-mermaid-validator-mcp --mcp-stdio

Claude Desktop

Add to your claude_desktop_config.json (Settings > Developer > Edit Config):

{
  "mcpServers": {
    "mermaid-validator": {
      "command": "npx",
      "args": ["-y", "@ai-of-mine/fast-mermaid-validator-mcp", "--mcp-stdio"]
    }
  }
}

Gemini CLI (Google)

Add to your ~/.gemini/settings.json (or per-project .gemini/settings.json):

{
  "mcpServers": {
    "mermaid-validator": {
      "command": "npx",
      "args": ["-y", "@ai-of-mine/fast-mermaid-validator-mcp", "--mcp-stdio"]
    }
  }
}

Prerequisites

Both tools require Node.js (v18 or later) installed on your machine. The MCP server downloads automatically via npx on first use.

Learning Mermaid Syntax

VMark renders standard Mermaid syntax. To master diagram creation, refer to the official Mermaid documentation:

Official Documentation

Diagram Type	Documentation Link
Flowchart	Flowchart Syntax
Sequence Diagram	Sequence Diagram Syntax
Class Diagram	Class Diagram Syntax
State Diagram	State Diagram Syntax
Entity Relationship	ER Diagram Syntax
Gantt Chart	Gantt Syntax
Pie Chart	Pie Chart Syntax
Git Graph	Git Graph Syntax

Practice Tools

• Mermaid Live Editor — Interactive playground to test and preview diagrams before pasting into VMark
• Mermaid Documentation — Complete reference with examples for all diagram types

TIP

The Live Editor is great for experimenting with complex diagrams. Once your diagram looks right, copy the code into VMark.
